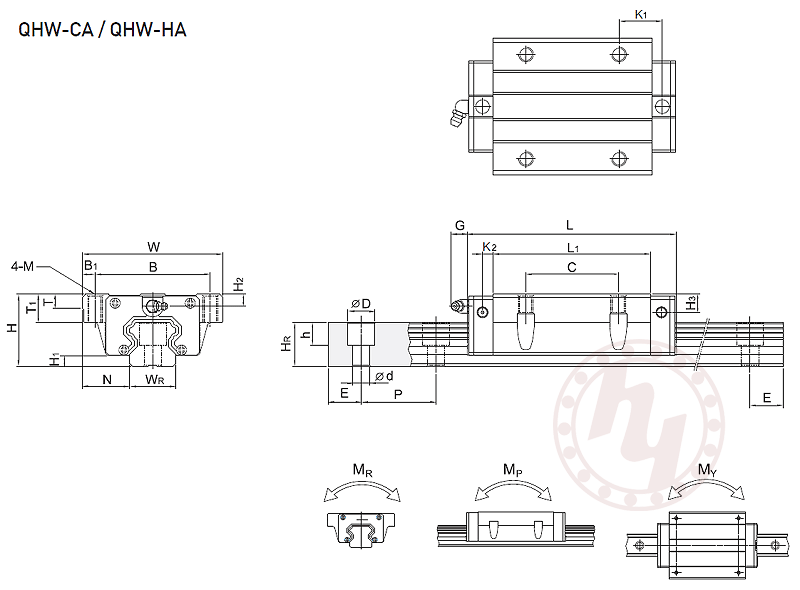

| 组件尺寸 | H | 30 | mm |
| H1 | 4.6 | mm | |
| N | 21.5 | mm | |
| 滑块尺寸 | W | 63 | mm |
| B | 53 | mm | |
| B1 | 5 | mm | |
| C | 40 | mm | |
| L1 | 50.5 | mm | |
| L | 76.7 | mm | |
| K1 | 9.75 | mm | |
| K2 | 6 | mm | |
| G | 12 | mm | |
| M | M6 | mm | |
| T | 8 | mm | |
| T1 | 10 | mm | |
| T2 | 9.5 | mm | |
| H2 | 6 | mm | |
| H3 | 6 | mm | |
| 导轨尺寸 | WR | 20 | mm |
| HR | 17.5 | mm | |
| D | 9.5 | mm | |
| h | 8.5 | mm | |
| d | 6 | mm | |
| P | 60 | mm | |
| E | 20 | mm | |
| 导轨的固定螺栓尺寸 | 导轨的固定螺栓尺寸 | M5x16 | mm |
| 基本额定负荷 | 动负荷C | 23.08 | kN |
| 静负荷C0 | 25.63 | kN | |
| 容许静力矩 | MR | 0.26 | kN-m |
| Mp | 0.19 | kN-m | |
| My | 0.19 | kN-m | |
| 重量 | 滑块 | 0.4 | kg |
| 导轨 | 2.21 | kg/m | |
 | |||
